Dallas Forth Worth Custom Wine Cellars Westlake TX – Part 1

Dallas Forth Worth Custom Wine Cellars Westlake TX – Part 1 (A Processed Video Transcription)

Custom Wine Cellars Westlake TX Project
.

The Custom Wine Cellars Westlake TX that I’m about to show you is quite an unusual residential wine cellars.  It’s a very small residential wine cellars; it’s only about 6 1/2 feet by not quite 7 feet wide and deep.

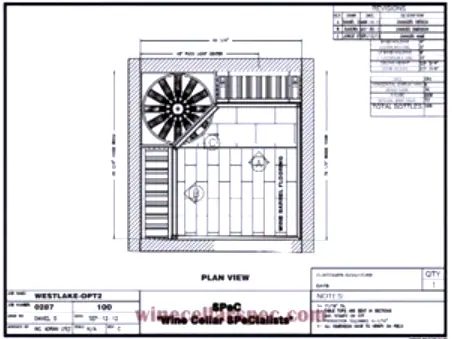

Overhead View of Custom Wine Cellars Westlake TX

Overhead View of Custom Wine Cellars Westlake TX

What we are going to show is we are going to walk you through two videos.  This is video number one showing you the design and video number 2 will show you photos of the completed custom wine cellars Westlake TX project.  So be sure and take a look at that video as well.

Here we are looking at the plan view or the overhead view of the residential wine cellars.  You’ll notice that there are 526 total bottles in the cellar.  We did reclaimed wine barrel flooring as well as reclaimed wine barrel tabletop.  The corner is a circular rack and we’re going to show that as we go along.  Elevation A is the back wall, elevation B is the left wall and elevation C is the corner.

Plan View - Residential Wine Cellars Westlake TX

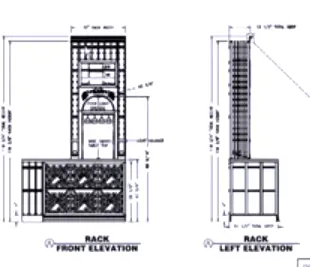

Elevation A – Residential Wine Cellars Westlake TX

Elevation A, you’ll see that we have individual bottles along the back wall.  We have an arch hand carved, the grape vine design, a glass rack, horizontal racking for magnum bottles above, and below we have a double deep area with solid diamond bins.  The base crown moldings in this residential wine cellars are each 4 inch high.  The crown molding is a two-step crown molding as you could see in a larger view to the right.

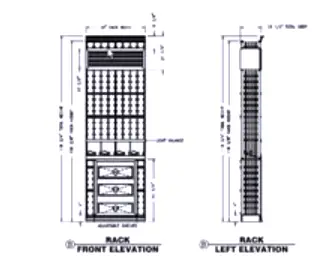

Elevation B - Left Wall Wine Cellar Design

Elevation B – Left Wall Wine Cellar Design

As we move on to elevation B, the left wall we built in a grill cover and box to hide the RM2600 split wine cooling system.  This is where the fan coil goes inside the box.  The box is made of the same wood as the racks to complement.  You have individual 750 bottles and we have a display row with a light valance where the customer installed LED ribbon lighting.  You have another row of 750 bottles on each side and case storage in the center with adjustable shelves.

Carousel Wine Rack for Custom Wine Cellars

Carousel Wine Rack for Custom Wine Cellars

Moving on to the corner is where we did a carousel rack.  It’s a half rack, half height wide, and these are circular racks turn around so you can get at each bottle.

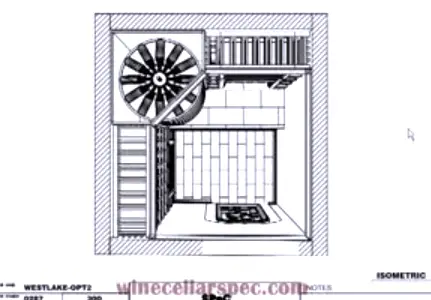

Overhead 3D View - Custom Wine Cellars Westlake TX

Overhead 3D View – Custom Wine Cellars Westlake TX

Here is the overhead 3D view.  Here again you can see where we put the reclaimed wine barrel table tops and reclaimed wine barrel flooring inside the cellar.  You have your single deep rack on the left, single deep rack up above on the right with the deep table top and lower racks with the carousel in the corner.

Completed Design of Custom Wine Cellars Westlake TX

Completed Design of Custom Wine Cellars Westlake TX

Here you’re looking in from the door at the finished residential wine cellars, and again the corner view, and from the right to the left.

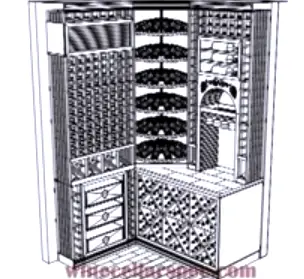

Corner View 3D Wine Cellar Design

Corner View 3D Wine Cellar Design

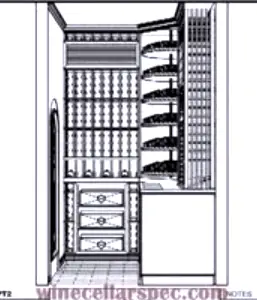

Right View - 3D Wine Cellar Design

Right View – 3D Wine Cellar Design

This is the door that we used.  It’s a Tuscan door.  It has a rod iron grape vine design which is operable, dual-paned glass.  It includes your case moldings, interior and exterior, and an automatic door bottom. You’ll see all of that in the photos.

Tuscan Wine Cellar Door for Residential Wine Cellars

Tuscan Wine Cellar Door for Residential Wine Cellars

Please go to video number 2 and view the finished product of the Custom Wine Cellars Westlake TX.
